LZWSM83KSA
$100.00

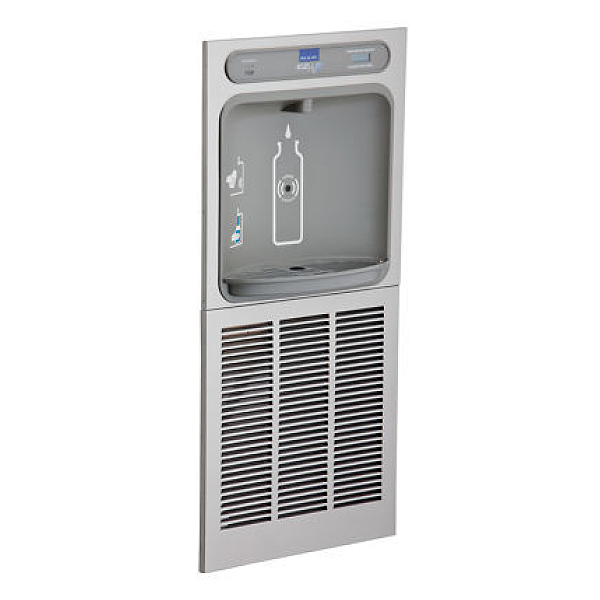

Elkay ezH2O® Bottle Filling Station In-Wall Filtered 8 GPH, Stainless 220V *Only available for Saudi Arabia. Chilling Capacity of 8.0 GPH (gallons per hour) of 50 F drinking water, based on 80 F inlet water and 90 F ambient, per ASHRAE 18 testing. Features shall include Hands Free, Visual Filter Monitor, Filtered, Green Ticker™, Laminar Flow, Antimicrobial, Real Drain. Electronic Bottle Filler Sensor activation. Product shall be Wall Mount (Inwall Frame/Plate), for Indoor applications, serving 1 station(s). Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
- Features
- Specifications
- Downloads
Designed as a stand-alone unit or to be paired with Elkay SwirlFlo or Soft Sides architectural fountains.
Touchless, sensor activation (bottle filler) designed for easy use.
Fill rate is 1.1 GPM.
Visual filter monitor with LED filter status indicator for when filter change is necessary.
The 3,000-gallon filter is certified to NSF 42 and 53 for lead, Class 1 particulate, chlorine, taste and odor reduction.
Green Ticker informs user of number of 20 oz. plastic water bottles saved from waste.
Laminar flow provides clean fill with minimal splash.
Silver ion antimicrobial protection on key plastic components to inhibit the growth of mold and mildew.
Real drain system eliminates standing water.
Rated for indoor use.
Mounting Option
Wall Mount (Inwall Frame/Plate)
Finish
Stainless Steel
Included
Bottle Filler (LZWSM83CSA), Filter (EWF3000), Chiller (ECH83SA), Mounting Frame (MFWS100)
Made in USA
built
Material
Stainless Steel
Number of Stations
1
Number of Stations Serving
1
Power
220V/60Hz
Shipping Dimensions
L: 718mm
W: 1375mm
H: 1130mm
Shipping Weight
36 kg
Special Note
For Saudi Arabia Only
ADA Complicance
Yes
Installation Location
Indoor
Bubbler Style
No Bubbler
Chilling Option
30 LPH
Compliance Drinking Solutions
ADA & ICC A117.1|ASME A112.19.3/CSA B45.4|Buy
American Act|GreenSpec|NSF 42|NSF 53|NSF 61|NSF 372 (lead free)
Global Compliance
SASO IEC 60335-2-89 & 1062
Product Dimensions
L: 502mm
W: 89mm
H: 1037mm
Product Features
Antimicrobial, Filtered, Green Ticker™, Hands Free, Laminar Flow, Real Drain, Visual Filter Monitor
